Information panel

Rispondi
Patrik
Messaggi: 4
Iscritto il: 22/07/2017, 12:48
Modello Camper: Rimor Skyfree

Information panel

Messaggio da Patrik » 22/07/2017, 13:37

Hey!

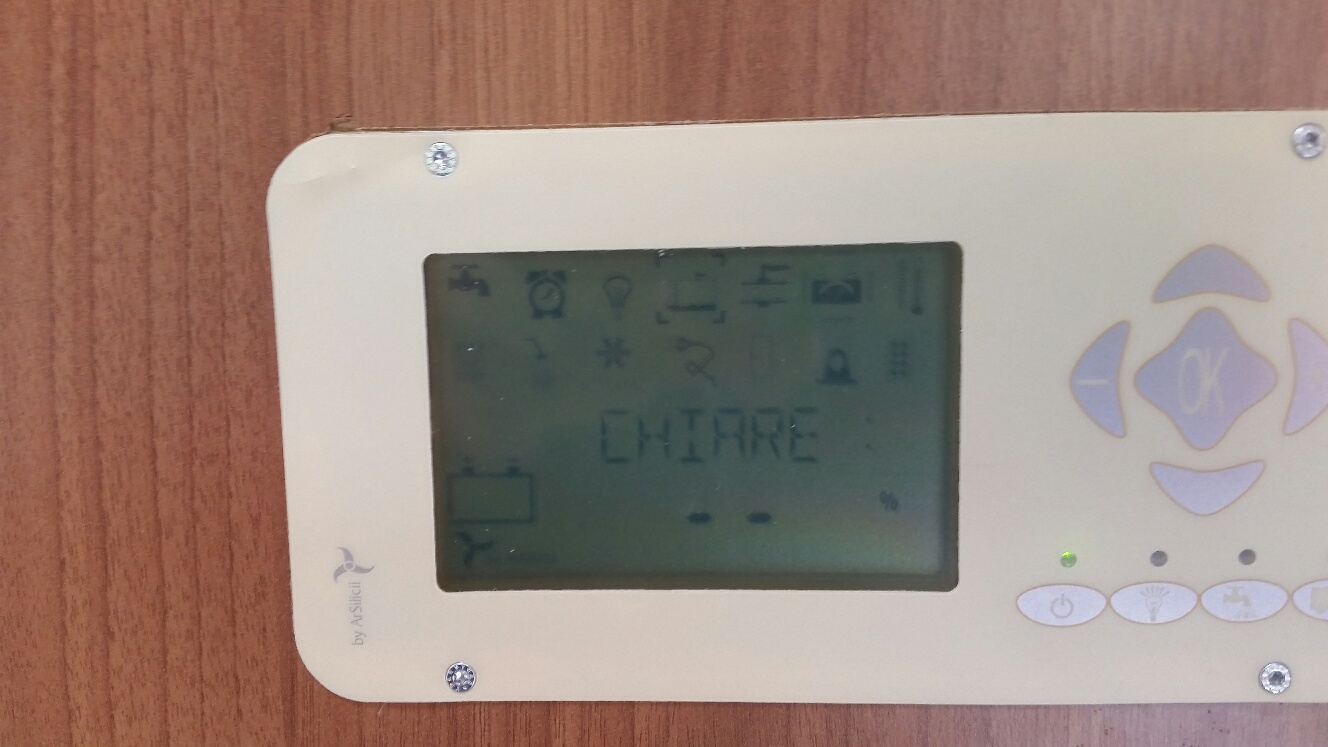

I have a Rimor Sky Free, 2016. After three months of use, the information panel has stopped working. None of the connected sensors respond. The pump does not work. I can start the panel but not anything else. The lights work, but they are switched on in new places in the car. Panelel is an LcdTTK.6318. All the fuses are ok.

What can I do to make it work again.

With kind regards

Patrik Brandby
Allegati
Avatar utente
SimoneR
Amministratore
Amministratore
Messaggi: 623
Iscritto il: 03/09/2015, 8:46
Località: Monteriggioni

Re: Information panel

Messaggio da SimoneR » 22/07/2017, 20:26

Hello. Check on pump node (near water tank) if the led is ON and if it flash or is always ON.
Patrik
Messaggi: 4
Iscritto il: 22/07/2017, 12:48
Modello Camper: Rimor Skyfree

Re: Information panel

Messaggio da Patrik » 23/07/2017, 13:47

Hello!

I have a green diode that flashes red every 2 seconds.

// Patrik
Avatar utente
SimoneR
Amministratore
Amministratore
Messaggi: 623
Iscritto il: 03/09/2015, 8:46
Località: Monteriggioni

Re: Information panel

Messaggio da SimoneR » 23/07/2017, 14:15

Hello. Try to disconnect pump node and check if all leds on other board (like a powerlink) flash only green. If all leds flash green, the problem is on pump node.
Patrik
Messaggi: 4
Iscritto il: 22/07/2017, 12:48
Modello Camper: Rimor Skyfree

Re: Information panel

Messaggio da Patrik » 23/07/2017, 16:00

Hello again!

When I pulled out the pump plug, the control diode started flashing green. The information panel received information about battery status and the lights worked again.

Is the pump broken, must it be replaced?

Regards

Patrik
Avatar utente
SimoneR
Amministratore
Amministratore
Messaggi: 623
Iscritto il: 03/09/2015, 8:46
Località: Monteriggioni

Re: Information panel

Messaggio da SimoneR » 24/07/2017, 7:34

Hello

To solve the problem you must change the pump node and install a diode to protect the node by overvoltage.
Please write me an email (Assistenza.tecnica@arsilicii.com) with a photo of the node and I write you all info to buy it.
Patrik
Messaggi: 4
Iscritto il: 22/07/2017, 12:48
Modello Camper: Rimor Skyfree

Re: Information panel

Messaggio da Patrik » 24/07/2017, 18:18

Thank you for a good service and nice response.

I am impressed that this service could be done over the weekend.

Many thanks.

Best regards

Patrik Brandby
